PDU M PRO X

With the fast advancement of AI technology, the power consumption of GPU servers and the supporting hardware infrastructure continues to increase, constantly pushing beyond the power limits of standard cabinets. As the central hub for power distribution inside racks, PDUs (Power Distribution Units) are now facing unprecedented challenges. The MPDU ProX high-power-density intelligent hybrid PDU is an innovative solution specifically engineered to meet these demanding requirements. MPDU ProX can deliver up to 44 kW per unit, fully supporting the deployment of 3–4 mainstream GPU servers inside a standard 42U cabinet.

Key features include:

  • Intelligent monitoring and control: supports real-time monitoring of total PDU energy consumption and per-outlet energy consumption; provides remote, outlet-level control to ensure precise and efficient power distribution.

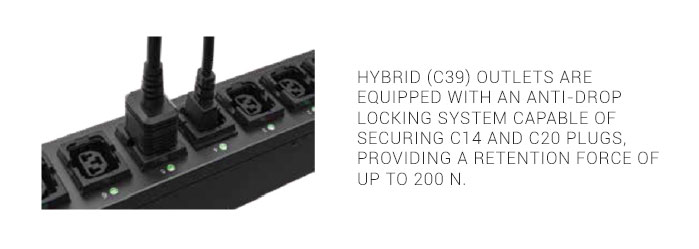

  • Flexible and compatible design: uses hybrid IEC C39 outlets, compatible with standard IEC C14 and IEC C20 server plugs, equipped with anti-drop locking mechanisms. This outlet design significantly simplifies PDU selection and makes IT equipment installation faster and more efficient.
  • Data visualization: thanks to a clear and intuitive graphical interface, key electrical parameters from cabinet level down to individual outlets are visible at a glance. This allows users to clearly understand energy consumption.
  • Load analysis: provides real-time power load trend curves and maintains historical data. Users can accurately identify load peaks and drops, optimizing the allocation of power and cooling resources within the data center.
  • Remote control: supports multiple remote control options, both for system power-on and for access to newly installed equipment, providing multiple protection layers for final power distribution circuits.
  • Efficient integration: the dynamic HTMLbased web management interface supports simultaneous multi-user and multi-device access and is compatible with advanced data interaction methods such as active data push, remote RPC calls, Open APIs, MQTT transmission protocol and ODBC, enabling seamless integration into enterprise networks and significantly improving data center operational efficiency.
